圆柱钻床 H690-07

碳化物用于金属用于钢材

Overview

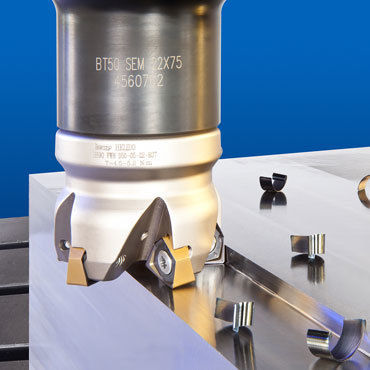

HELIDO Trigon Line H690-07 family is designed for productive rough to semi-finish milling, primarily on cast iron and steel components. The geometry generates positive radial and axial rake angles that ensure smooth milling with soft entry to and exit from material. The combination of effective geometry, innovative carbide grades and 6 cutting edges enhances productivity and reduces operational machining costs.

Key features

• 90° milling cutters carrying trigon-shaped inserts
• Double-sided insert with 6 cutting edges
• Positive radial and axial rake angles
• Accurate 90° profile of machined square shoulder, with ramping down ability
• Highly economical solution for various milling applications

Operation capability

• Facing
• Shouldering (square shoulder milling)
• Pocket milling
• Interpolated milling
• Face milling / general purpose milling

Diameter range

• Metric: 32-125 mm
• Imperial: 1.25-4.0"

Insert sizes
Insert size: 07 mm

Available grades

• IC808
• IC830
• IC810
• IC5100
• IC845
• IC5400
• IC330

Additional information
The HELIDO H690 family provides 6 helical cutting edges per double-sided trigon insert for economical use of the insert (multiple cutting edges). The inserts and cutter geometry produce smooth engagement and exit, allow accurate 90° shoulder generation and support ramping/down-milling approaches.

Caractéristiques / spécifications techniques

• Product family: HELIDO Trigon Line H690-07
• Model / commercial denomination: HELIDO H690
• Intended materials: cast iron and steel (general use)
• Insert geometry: trigon-shaped double-sided inserts, 6 cutting edges
• Insert size: 07 mm
• Diameter range: 32–125 mm (1.25–4.0")
• Cutting angles: positive radial and axial rake angles
• Applications: facing, shouldering (90° square shoulders), pocketing, interpolated milling
• Economic features: double-sided multi-edge inserts maximize usable edges and reduce tooling cost per edge
